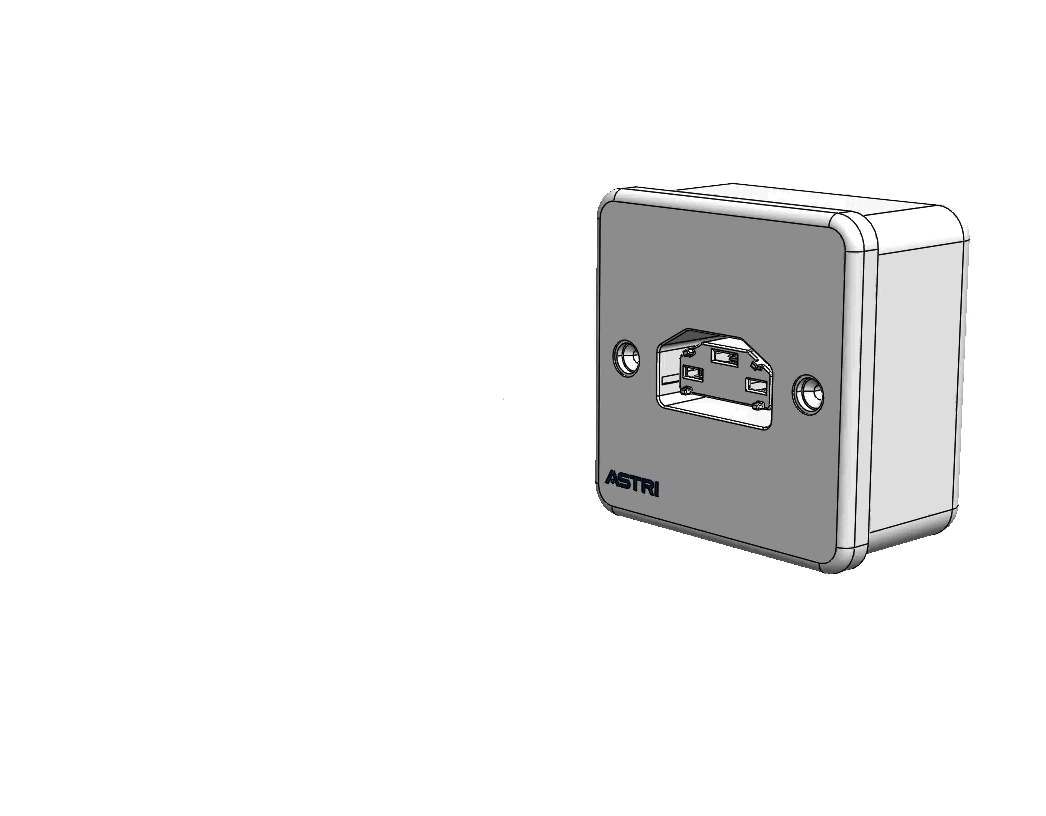

DC Arc-less Socket
DAS400V20A
The DC Arc-less Socket is a connector designed for distributing DC power in indoor applications. It includes a socket outlet which is integrated with the panel and a PCBA for electric arc prevention. The socket outlet matches the DC plugs specified in IEC TS 62735-1 and supports hot-plug operation under a DC load of up to 400V/20A.
Zero Standby Power
Our DC socket uses less than 0.3 W operational power with no standby power consumption.
400V DC / 10A Disconnection
Plug status is real-time monitored, our DC Arc-less Socket ensures safe disconnection without electric arc.
Electric arc happens during disconnection with a regular DC socket.
Product Breakdown
Semiconductor Based
Standard Form Factor
Ultra-low Power Consumption
Specifications
Technical
Nominal Voltage
375V DC
Electrical Service Life (400V/10A hot plug)
12,000 cycles
General
Power Loss (unplug/plug-in)
0/<0.25 W
Dimension (cm)
8.6 (w) x 8.6 (h) x 4.5 (l)
Communication
Wi-Fi, BLE
Datasheet
