Battery Converter
BC50kW1000V

BC50kW1000V is a high-power, bi-directional DC conversion module specifically designed to meet the application of energy storage devices, DC microgrids, and the cascade utilization of retired batteries.



  • Wide battery voltage range 200V – 1000V

  • Wide bus input voltage range 400V – 900V

  • Max. Efficiency 98.3%


  • Full feature protection

High Performance

Easy Setup and Installation

Wide operating ranges for battery storage system.

Remote/On-site Monitoring


 Isolated topology with peak efficiency up to 98.3%.

Remote monitoring with Can Bus.

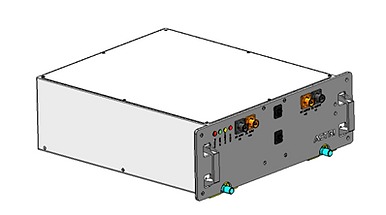

Dimension

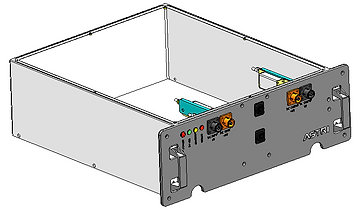

Product Breakdown

white bg.png
white bg.png

Specifications

Output DC (Battery side)
Output Power Range
50kW
Output Voltage Range
200 Vdc- 1000 Vdc
Output Current Range
0 - 120 A
Output Voltage Accuracy
< +/- 0.5%
Output Current Accuracy
<+/-1%  (Output loading of 200%-100%)

Equipment Protection
DC Output Overcurrent Protection
DC Output Overvoltage Protection
DC Input Overcurrent Protection
DC Input Overvoltage Protection
Thermal Protection
Output Undervoltage Load Drop Protection

Input DC (Bus side)
Input Power Range
50kW
Input Voltage Range
400Vdc - 900Vdc
Input Current Range
0-100A
Input Voltage Accuracy
< +/- 0.5%
Input Current Accuracy
<+/-1%  (Output loading of 200%-100%)

Efficiency
Max. Efficiency
98.3%

General Data
Operating Temperature Range
-40 to +55°C,
Derating at 45°C and above
Permissible Ambient Humidity
0 - 100%
Permissible Altitude Humidity
2000 m
Noise
<=25dB
Topology
Isolated
Communication
Can Bus
Cabinet Size (W x H x D)
500 x 203.2mm x 598 mm
(Excluding Connectors and Brackets)
Weight
53kg
Type of Cooling
Water Cooling
Datasheet
